Figure 5a

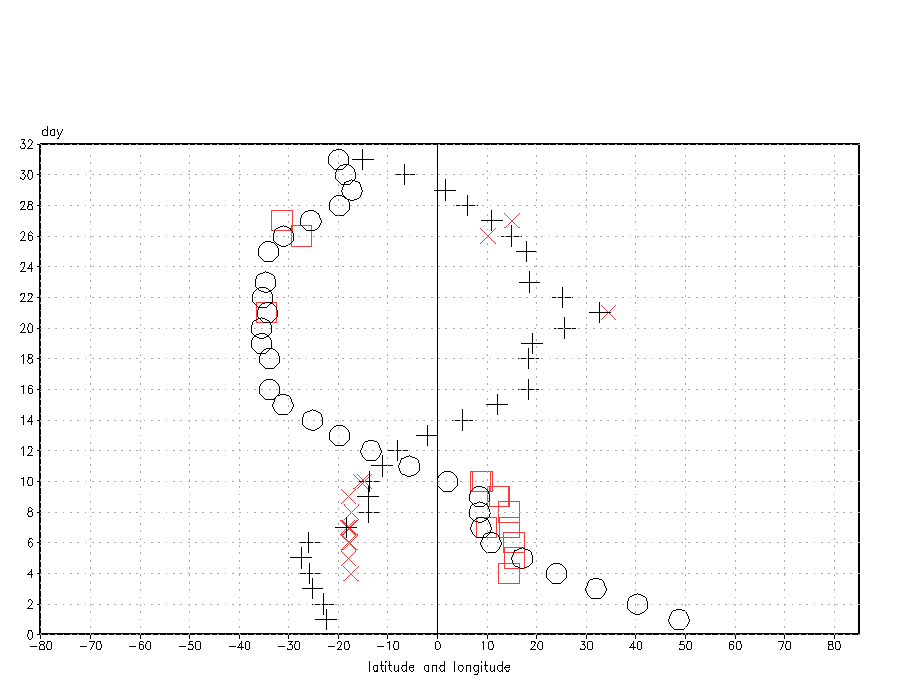

Figure 5a. Latitudes (circles) and longitudes (+'s), at local noon, reported in the Ship's Log from the Cumberland during July 1940 (black), plotted separately against the day of the month. Local noon latitudes (squares) and longitudes (x's) from deck 204, which fell within ±10° of each corresponding Cumberland position, are shown in red.

Figure 5b

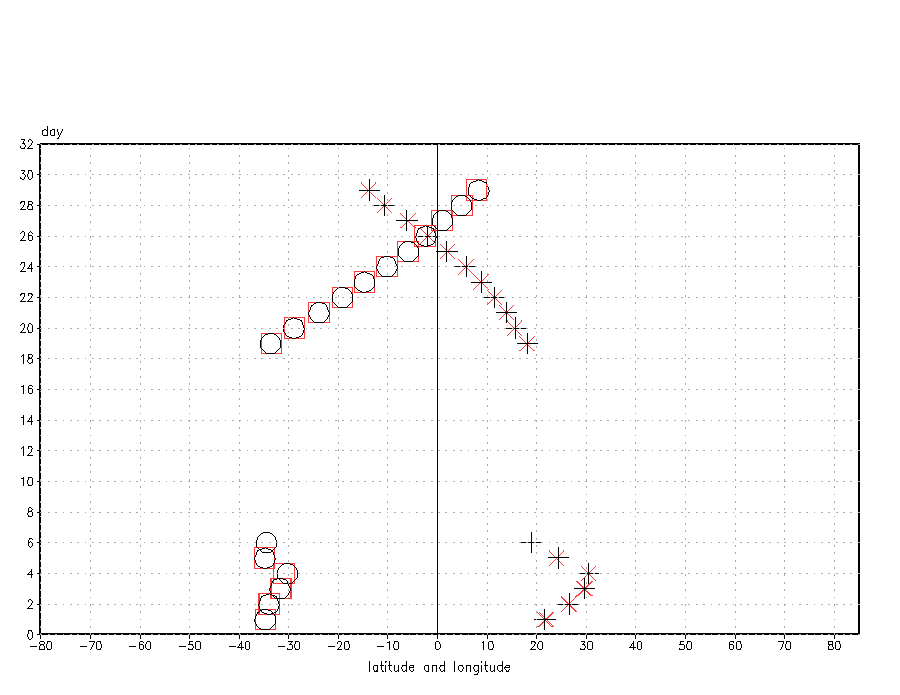

Figure 5b. As for Figure 5a, except for the Alcantara during December 1942.

Figure 5c

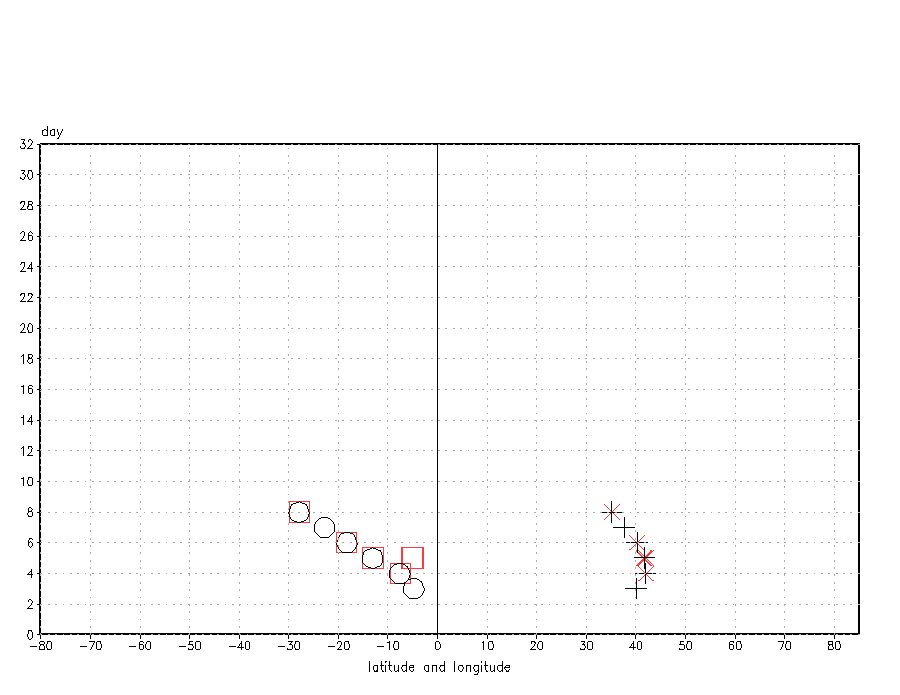

Figure 5c. As for Figure 5a, except for the Resolution during May 1943.

Figure 5d

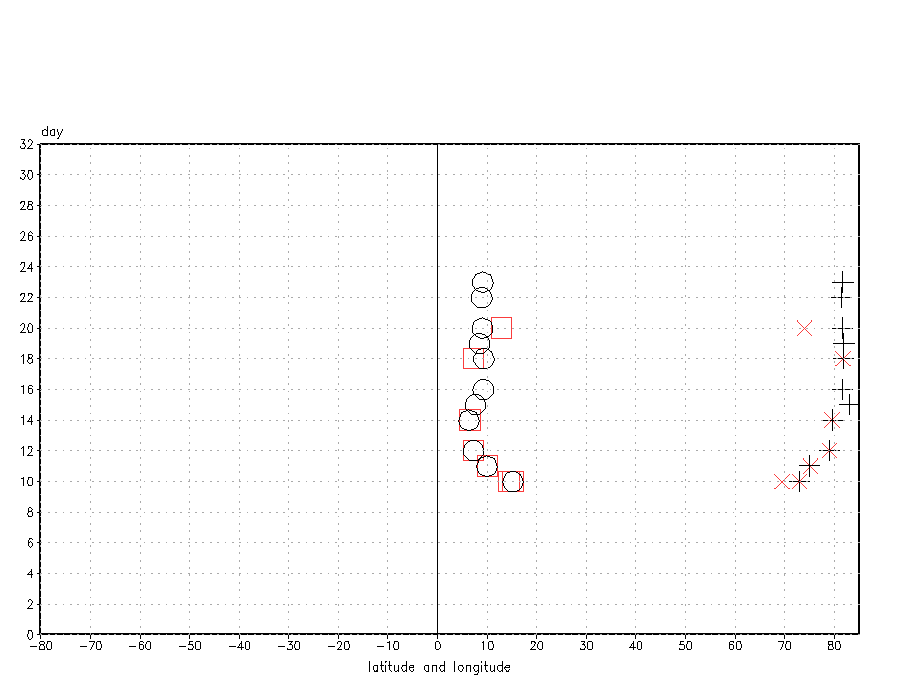

Figure 5d. As for Figure 5a, except for the Shah during May 1944.

Figure 5e

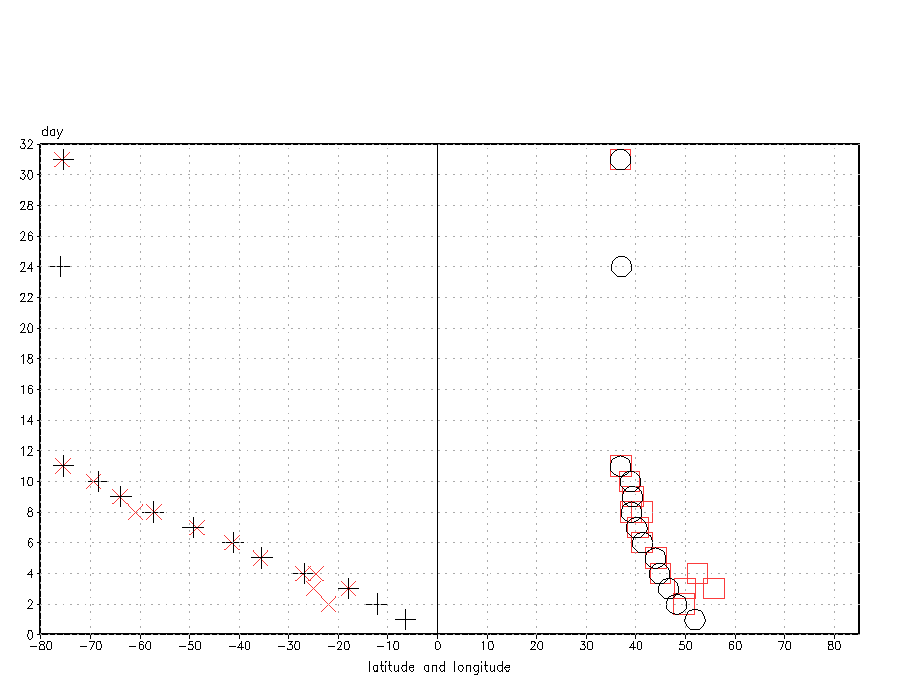

Figure 5e. As for Figure 5a, except for the Ruler during October 1944.
